Gazco Gas Vogue Midi CF Gas Stove Conventional Flue Chimney

Gazco Vogue Midi Specification:

• Safety Flame Supervision Device (FSD),
• Airwatch System
• Type of Heat: Radiant & Convected
• Heating Efficiency: 75%
• Heat Input High: 4.55 kW
• Heat Output High: 3.41 kW
• Heat Output Low: 1.90 kW

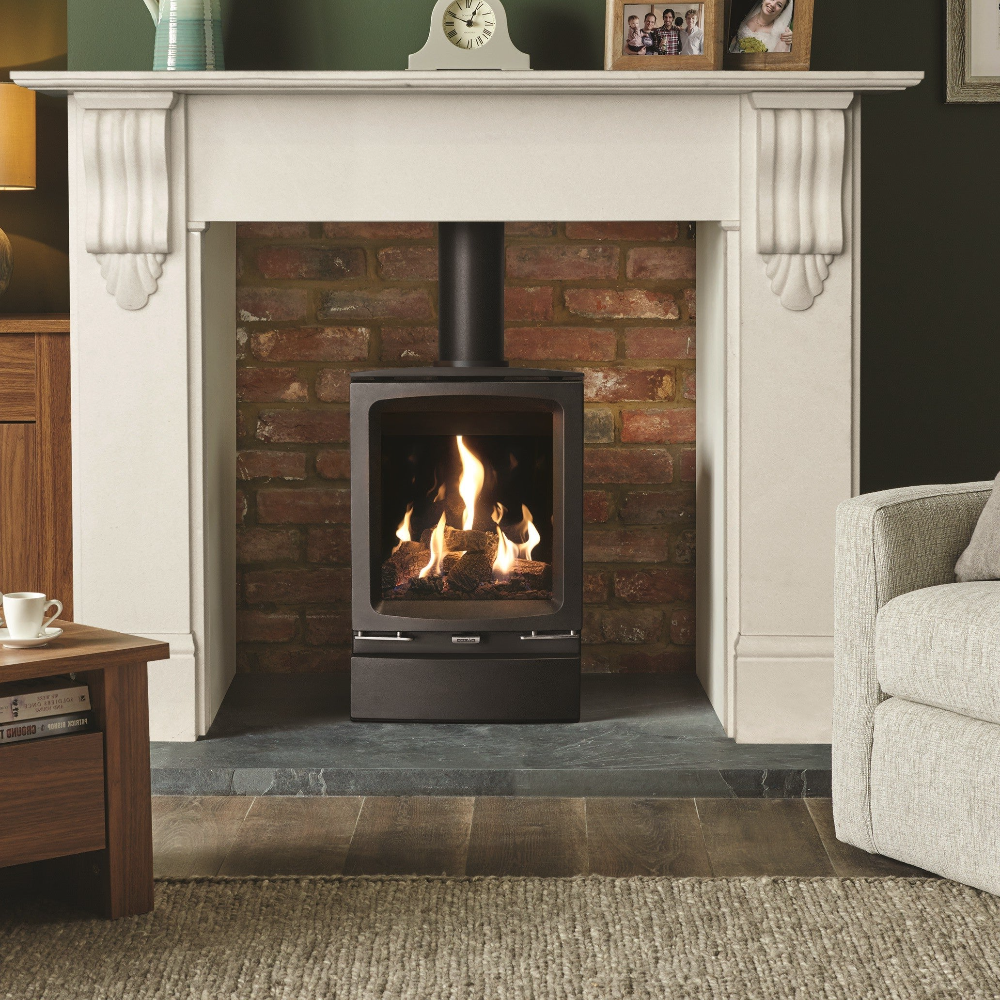

Gazco Gas Vogue Midi, High Efficiency (75%) Contemporary Gas Stove.

Elegantly styled to fit equally well in either contemporary or traditional settings alike, the Gazco Vogue Midi gas stoves feature a cast iron door and top plate with refined curves and bevelled edges.

Creating breathtaking flame visuals, Vogue Gas stoves feature a highly realistic log bed and a polished black glass lining that provides a stunning, multi-sided reflection of the flames. Designed with the very latest gas fire technology, these cutting edge stoves provide an ample 4.4kW of heat at 80% efficiency.

For greater convenience, these stylish stoves can be upgraded with a programmable thermostatic handset which allows you to pre-set the stove to provide heat at certain times or temperatures.

Elegantly styled to fit equally well in either contemporary or traditional settings alike, the Gazco Vogue Midi gas stoves feature a cast iron door and top plate with refined curves and bevelled edges.

Designed with the very latest gas fire technology, these cutting edge stoves provide an ample 4.4kW of heat at 80% efficiency.

Gazco Vogue Midi Specification:
Safety Flame Supervision Device (FSD),
Airwatch System
Type of Heat: Radiant & Convected
Heating Efficiency: 75%
Heat Input High: 4.55 kW
Heat Output High: 3.41 kW
Heat Output Low: 1.90 kW

Fuel Bed Options:
Log Effect with Embaglow for added Realism
Gazco Fuel Bed

Control Options:
Standard Remote Included.
Optional Thermostatic Remote Kit.

Colour Options:
Black Glass with Polished Stainless Steel Inserts.

Installation requirements:
Air Vent required
Class 1 or 2 Chimney Type

Stove Dimensions (technical drawing):

A) Height: 639mm
B) Width: 416mm
C) Depth: 367mm
D) Distance to Rear Flue: 208mm
E) Distance to Top Flue: 121mm

Minimum clearances between stove and other surfaces:
Top: 225mm
Sides: 150mm
Rear: 50mm
