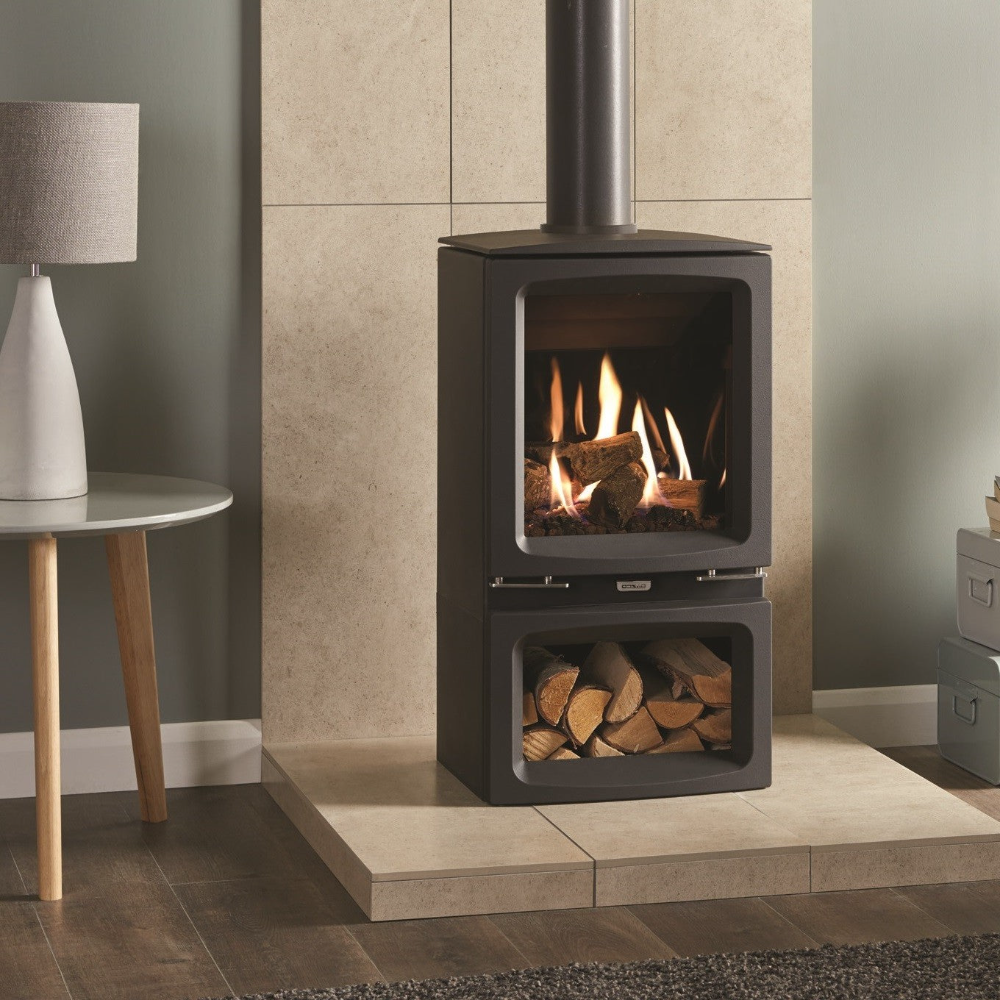

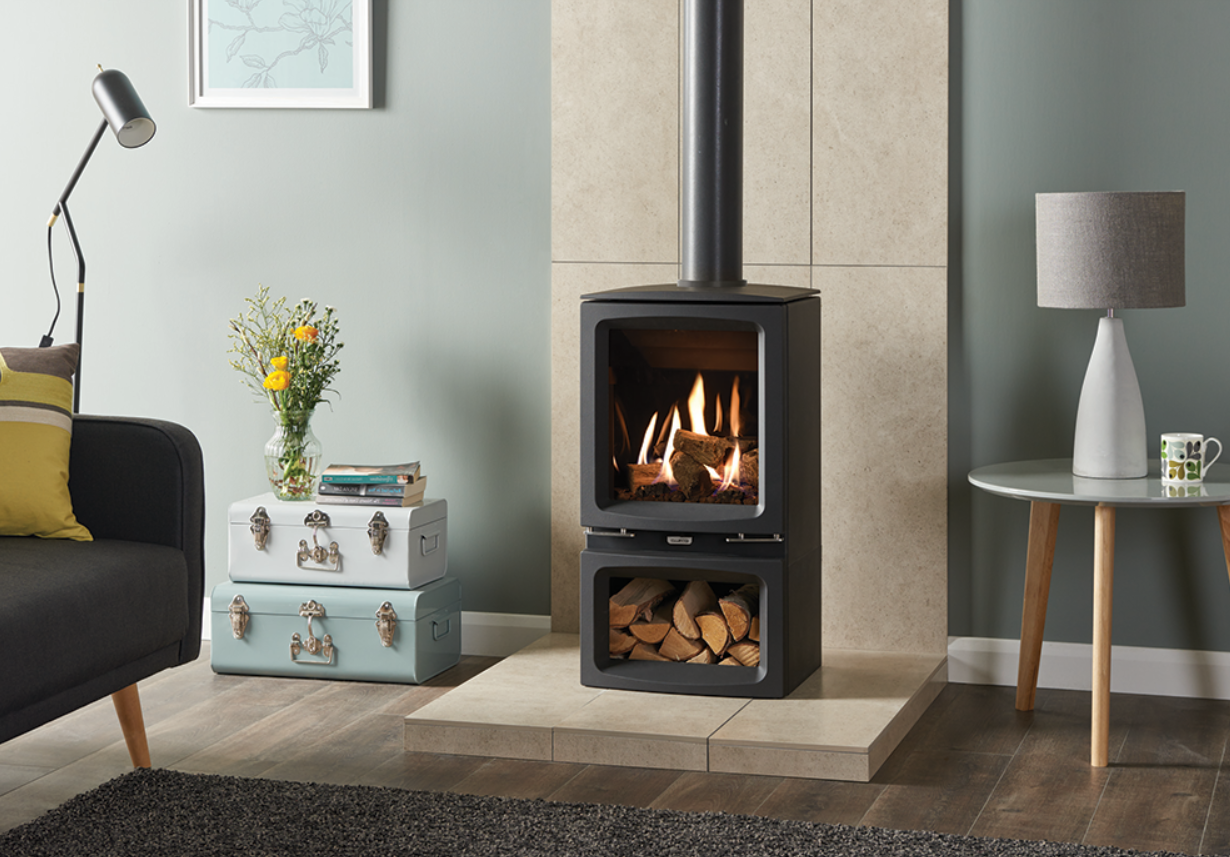

Gazco Vogue Midi Midline with Log Box Balanced Flue Gas Stove

Gazco Vogue Midi Midline Specification:

• Safety Flame Supervision Device (FSD),
• Airwatch System
• Type of Heat: Radiant & Convected
• Heating Efficiency: 75%
• Heat Input High: 4.55 kW
• Heat Output High: 3.41 kW
• Heat Output Low: 1.90 kW

Gazco Vogue Midi Midline with log box Balanced Flue Gas Stove High Efficiency (93%) Contemporary Balanced Flue Gas Stove.

Elegantly styled to fit equally well in either contemporary or traditional settings alike, the Gazco Vogue Midi gas stoves feature a cast iron door and top plate with refined curves and bevelled edges.

Creating breathtaking flame visuals, Vogue Gas stoves feature a highly realistic log bed and a polished black glass lining that provides a stunning, multi-sided reflection of the flames. Designed with the very latest gas fire technology, these cutting edge stoves provide an ample 4.4kW of heat at 80% efficiency.

For greater convenience, these stylish stoves can be upgraded with a programmable thermostatic handset which allows you to pre-set the stove to provide heat at certain times or temperatures.

Gazco Vogue Midi Specification:
Safety Flame Supervision Device (FSD),
Airwatch System
Type of Heat: Radiant & Convected

Heating Efficiency: 93%
Heat Input High: 4.55 kW
Heat Output High: 3.41 kW
Heat Output Low: 1.90 kW

Fuel Bed Options:
Log Effect with Embaglow for added Realism,
Gazco Fuel Bed

Control Options:
Standard Remote Included.
Optional Thermostatic Remote Kit.

Colour Options:
Black Glass with Polished Stainless Steel Inserts.

Installation requirements:

Balance Flue Option 1: Off The Top (Vertical Flue)
Components: 2 X 1000mm Straight & 1 X 1000mm terminal length

Balance Flue Option 2: Up & Out (Vertical Exit 90 Degree Bend)
Components: 1 X 498mm Straight, 1 X 462mm terminal length & 1 X 90 Degree Bend

Balance Flue Option 3: Out The Back (Rear Exit)
Components: 1 X 660mm terminal length & Terminal With Guard

Stove Dimensions (technical drawing):

A) Height: 639mm
B) Width: 416mm
C) Depth: 348mm
D) Distance to Rear Flue: 208mm
E) Distance to Top Flue: 137mm

Minimum clearances between stove and other surfaces:
Top: 225mm
Sides: 150mm
Rear: 50mm

As a Passive House Gas Fireplace-passive home fireplace-this appliance will result in a higher BER rating in your Irish home.
