Gazco Huntingdon 40 Balanced Flue Gas Stove

Gazco Huntingdon 40 Balanced Flue Gas Stove

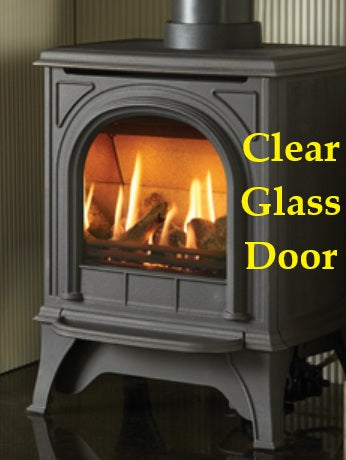

• Glass Fronted Log Flame Effect
• Up to 90.8% Gas Fire Efficiency
• Up to 5.4kW Gas Heat Output
• Flue Type: Balanced Flue Gas
• Manual Control as standard

Gazco Huntingdon 40 Balanced Flue Gas Stove

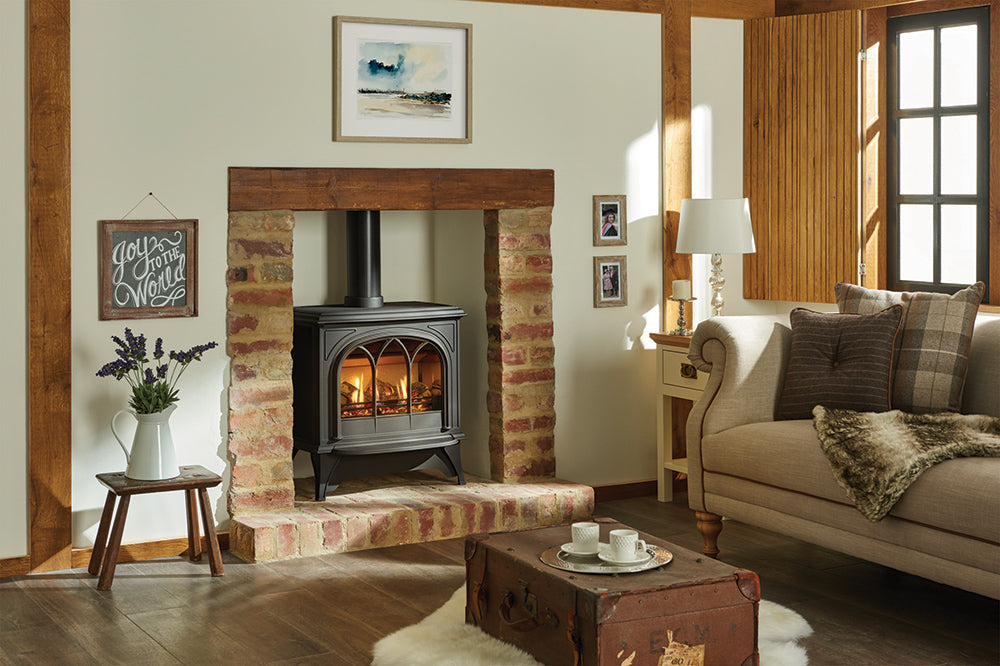

The largest model in the Gazco Huntingdon range, the Huntingdon 40 gas stove is perfectly at home in big open fireplaces or spacious interiors. With a powerful heat output of 5.4kW, it can quickly create a warming atmosphere whilst still maintaining an exceptional efficiency up to 84%, thanks to its cutting edge gas stove technology.

Gazco Huntingdon 40 Balanced Flue Gas Stove Specification:
Safety Flame Supervision Device (FSD)
Airwatch System
Type of Heat: Radiant & Convection.
Heating Efficiency: 90.8%
Heat Input High: 6.0kW
Heat Output High: 5.4kW
Heat Output Low: 2.2kW

Fuel Bed Options:
Log Effect Fuel bed with Emberglow

Control Options:
Manual With Upgradable Remote Control Options Below.
Optional Standard Remote Kit.
Optional Thermostatic Remote Kit.

Colour Options:
Matt Black, Matt Ivory, Enamel Ivory

Gas Stove minimum clearances required between stove and other surfaces:
From Top: 225mm
From Sides: 150mm
From Rear: 50mm

There are 2 Balance Flue kits available, these are as follows:

Balance Flue Option 1: Out The Back (Rear Exit)
Components: 1 X 660mm terminal length & Terminal With Guard

Balance Flue Option 2: Up & Out (Vertical Exit 90 Degree Bend) (Kit Number: 8567)
Colour: Stainless Steel
Components (1 X 940mm Straight, 1 X 462mm terminal length & 1 X 90 Degree Bend)
(NB Guard Required for below 2m)

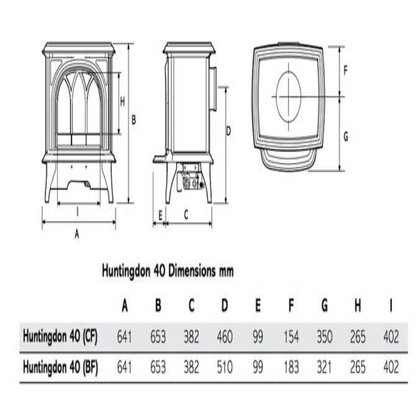

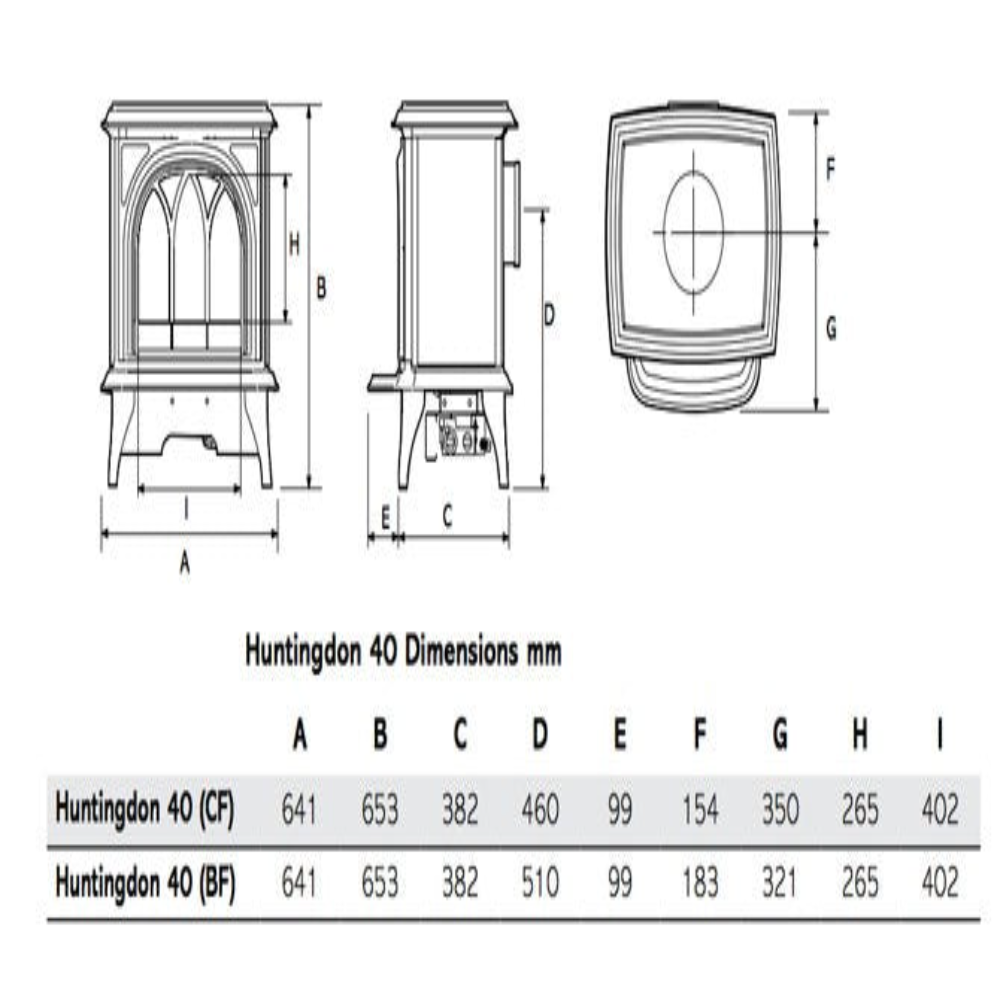

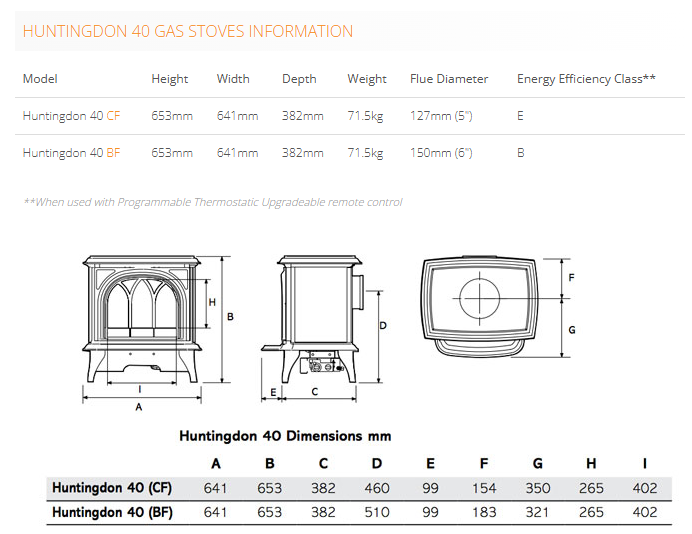

Technical Drawing

As a Passive House Gas Fireplace-passive home fireplace-this appliance will result in a higher BER rating in your Irish home.
