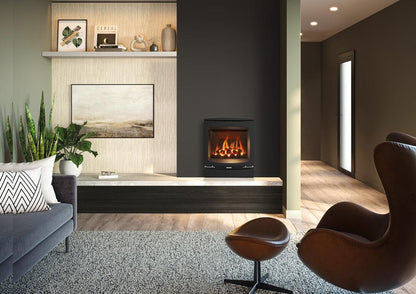

Gazco Logic HE Conventional Flue Coal Effect Gas Fire with Vogue Frame

Gazco Logic HE Conventional Flue Coal Effect Gas Fire with Vogue Frame

• Vogue Frame
• Up to 89% Gas Fire Efficiency

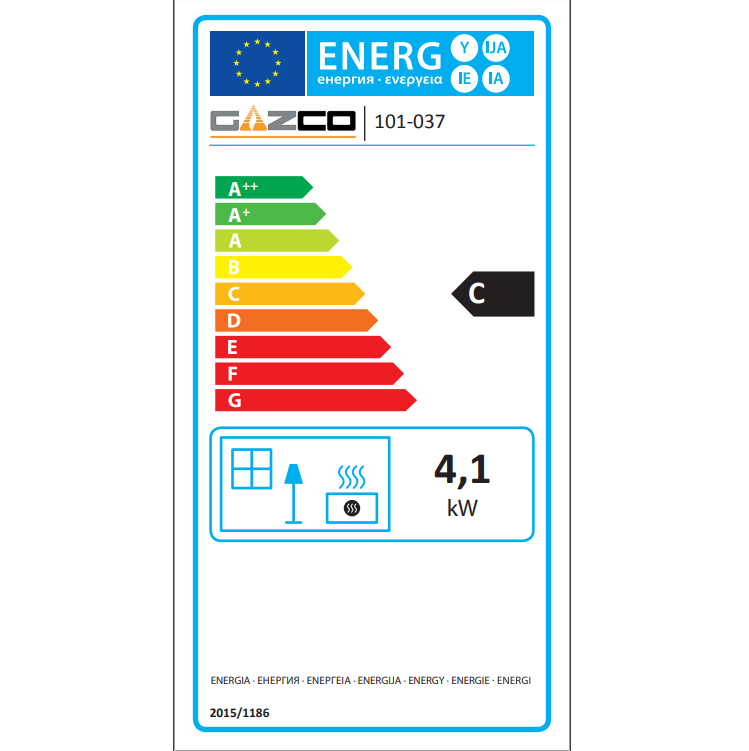

• Up to 4.1kW Gas Heat Output
• Chimney Type Class 1 or Class 2

• 5.1kW Gas Heat Input
• Slide Control System as standard
• Click here to view the full range of frame options

Gazco Logic HE Conventional Flue Coal Effect Gas Fire with Vogue Frame

Designed to warm the very heart of your home, a Gazco Inset Gas Fire brings you the promise of cozy comfort throughout those long winter nights.

Whether you want to achieve an up-to-the-minute, contemporary look or have your heart set on a more traditionally-designed fire, you will find a choice of highly-realistic flame effects and elegant frame options to suit your decorative style and budget.

The Logic HE features a glass front and boasts the highest efficiency of all the Logic Fires at up to 89%. The HE offers a choice of either logs or coal.

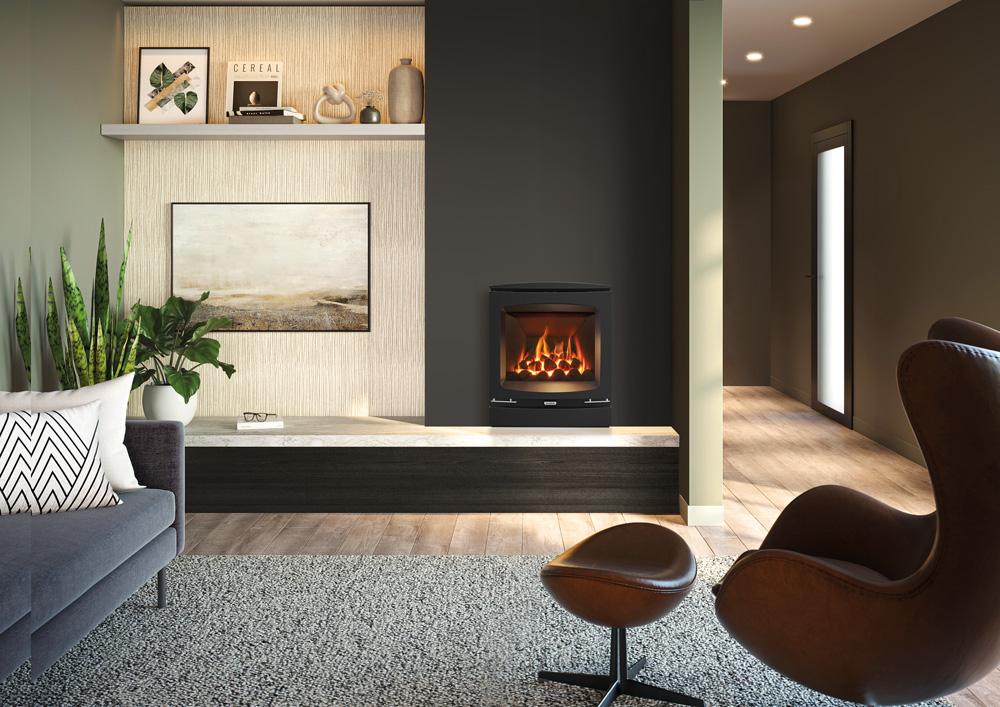

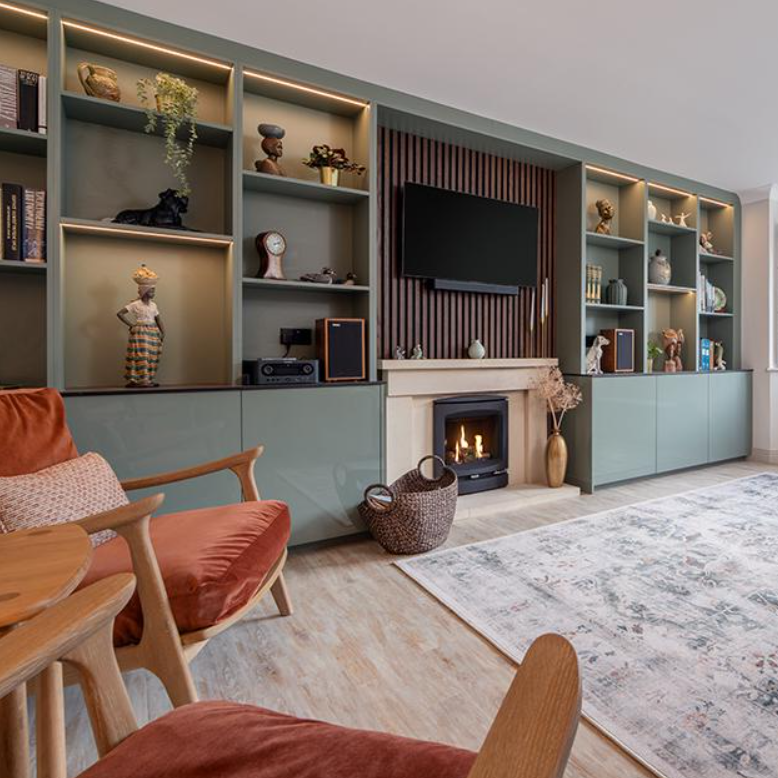

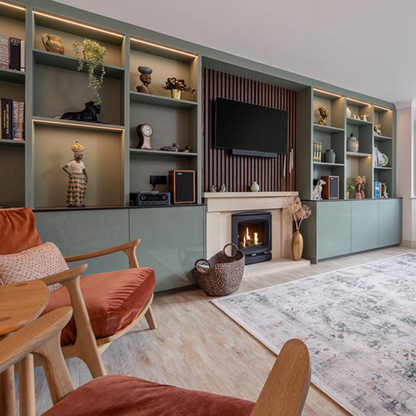

The Vogue frame has a contemporary style stove effect for modern fireplaces, or wall mounted installations.

Click here to view the full range of frame options

Logic™ Control Options
The Logic family of fires are available with your choice of different control options; slide control, or for absolute convenience a remote control for the ultimate luxury heating experience.

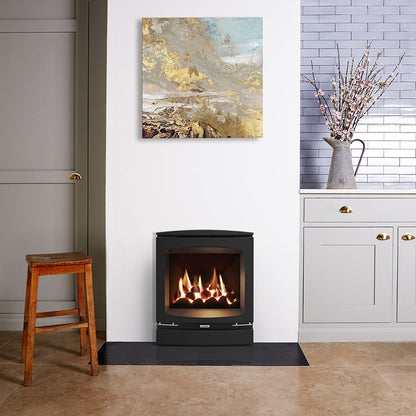

Slide Control
Gazco’s innovative slide system has a subtly designed, ergonomic control that is situated to the top right hand side of the fire’s frame for easy access. This easy reach lever offers complete and convenient control over the fire. Ignite or extinguish the fire as well as adjust flame height and corresponding heat levels to achieve the warmth and ambience you desire. Slide control Logic fires are available with a specific selection of frame styling options, please see table below for details. (This is the standard option of control that we retail for the Gazco Logic HE).

Remote Control Options
Logic HE remote control fires offer complete convenience, allowing you to operate your fire from the comfort of your sofa. Your fire’s remote control options will depend on which fuel-effect you choose.

The Logic HE coal effect remote control fires come with our Standard handset, which allows you to adjust heat output and flame height.

The Logic HE log effect can be selected with our Fully-sequential thermostatic handset. This advanced remote control allows you to ignite your fire and adjust the flame without getting up. This powerful control system can also set your Logic fire to maintain your preferred room temperature, if desired.

Key Features for Logic HE
CF: Up to 89%
CF: Up to 4.1kW (input 5.1kW)
Slide control or remote control versions
Fits into standard 410mm x 560mm x 250mm (width x height x depth) fireplace opening
Fuel bed options - Coal, Logs
Convection heat & Radiant heat
Wide selection of frames
Natural Gas or LPG
Glass fronted high efficiency
ODS (Oxygen Depletion Sensor)
Additional air vent may be required
Conventional Flue

Installation requirements:
Air Vent may be required
Class 1 or Class 2 Chimney Type

Builders Opening Requirement Sizes for Logic HE Coal:
Height: (min) 555 mm (max) 570 mm
Width: (min) 400 mm (max) 450 mm

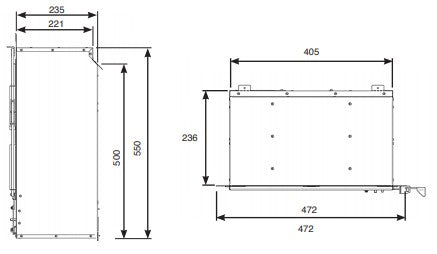

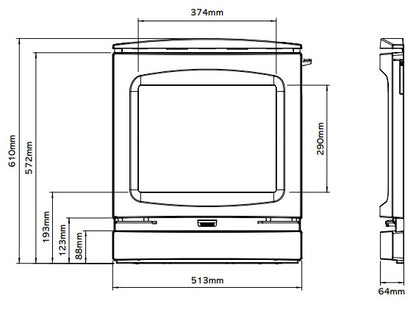

Technical Drawing:

Gazco Logic HE Flame Effect Video
