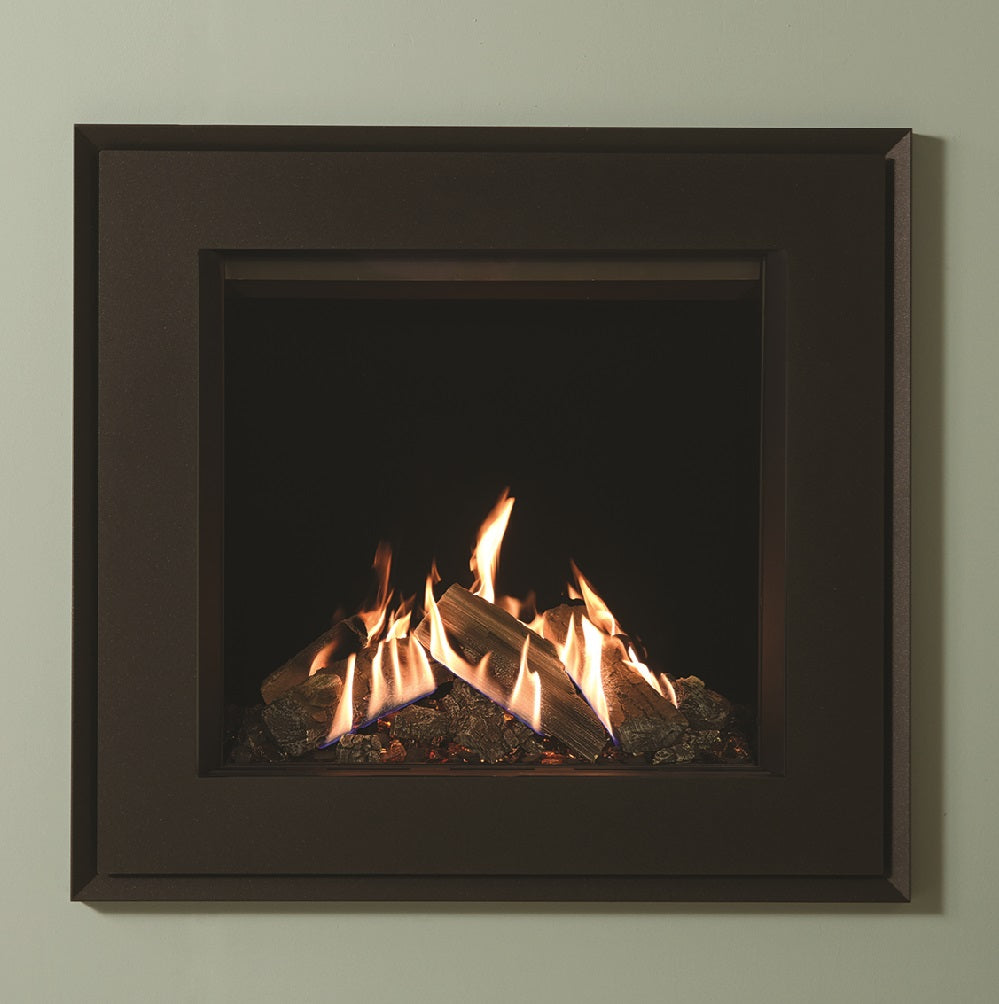

Gazco Reflex 75T Balanced Flue Gas Fire with Evoke Steel Frame

Gazco Reflex 75T Balanced Flue Gas Fire with Evoke Steel Frame

• Evoke Steel Frame
• Glass Fronted Log Flame Effect
• Up to 92% Gas Fire Efficiency
• 10kW Gas Heat Input
• Up to 8.3kW Gas Heat Output
• Flue Type: Balanced Flue Gas

• Remote Control as standard

Gazco Reflex 75T Balanced Flue Gas Fire with Evoke Steel Frame

The Reflex 75T gas fire will make an excellent addition to any home, as it can be styled within a contemporary setting with its wide selection of frame and lining options or even a more traditional home as it has been designed to fit within a standard 36" chimney breast.

The innovative burner technology in the Reflex 75T gas fire makes it Gazco’s most realistic fire to date. With the addition of hand painted ceramic logs and the non-reflective glass front, this gas fire echoes the aesthetic of a real open-fire.

The Reflex 75T comes with the Harmony10 remote control to adjust the height and heat of the flames as well as to set a daily or weekly schedule to suit the homeowners lifestyle. The fire can also be set to maintain a specific room temperature along with controlling the EmberLight LED bed that can be enjoyed with and without the flames.

Gazco Reflex 75T Specification:
Safety Flame Supervision Device (FSD)
Airwatch System
Type of Heat: Radiant & Convection
Heating Efficiency: 92%
Heat Input High: 10 kW
Heat Output High: 8.3 kW

Fuel Bed Options:
Log Effect with LED fuel bed for added realism

Firebox Lining Options:
Brick Effect, Ledgestone Effect, Black Glass, Fluted Vermiculite, or Black Reeded

Control Options:
Brand New Harmony10 Remote Control - Sequential & Programmable

Installation requirements:
Air Vent not required
Balanced Flue Kit required

There are 2 Balance Flue kits available, these are as follows:

Balance Flue Option 1: Up & Out (Vertical Exit 90 Degree Bend)
Kit Number: 8567
Colour: Stainless Steel
Components (1 X 940mm Straight, 1 X 462mm terminal length & 1 X 90 Degree Bend)
(NB Guard Required for below 2m)

Balance Flue Option 2: Off The Top (Vertical Flue)
Kit Number: 8524
Colour: Stainless Steel
Components (2 X 1000mm Straight & 1 X 1000mm terminal length)

Technical Drawing - Sizes:

As a PASSIVE HOUSE GAS FIREPLACE-PASSIVE HOME FIREPLACE-this appliance will result in a higher BER rating in your Irish home.

Gazco Reflex Flame Effect
