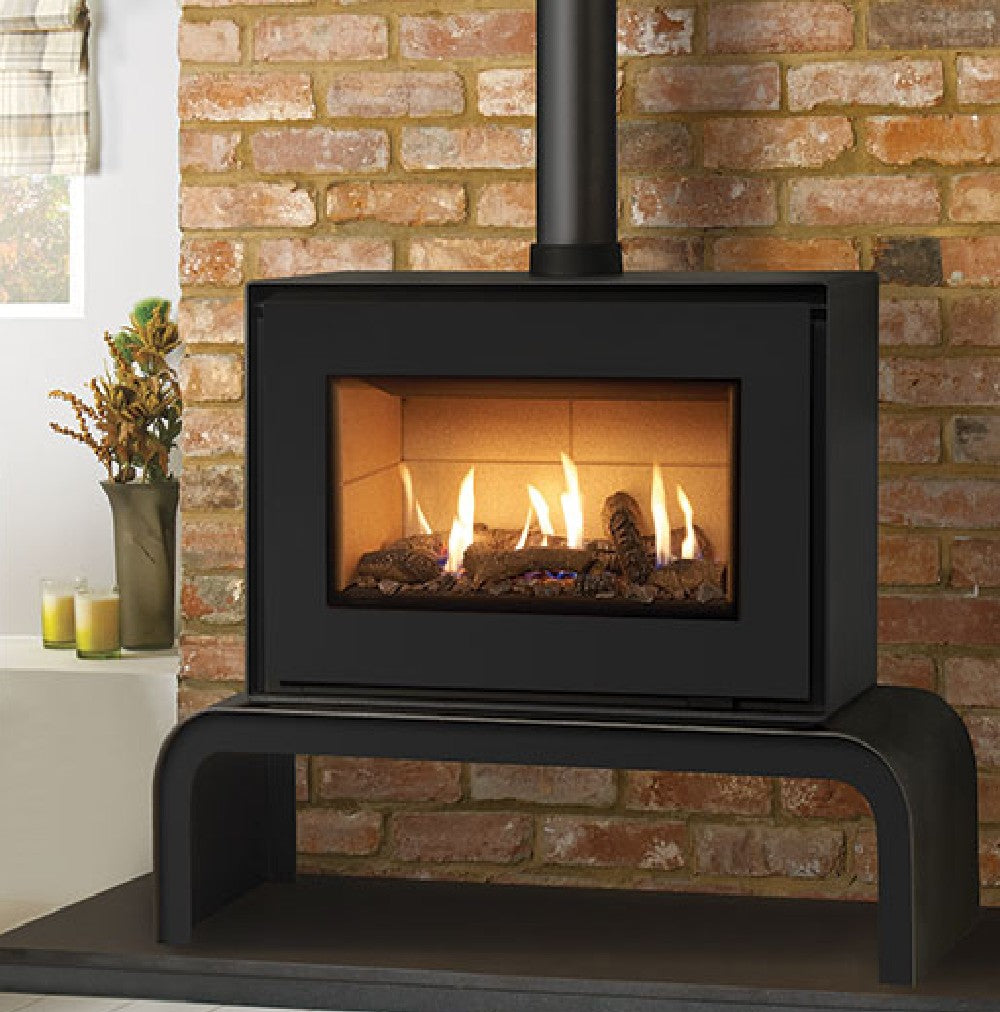

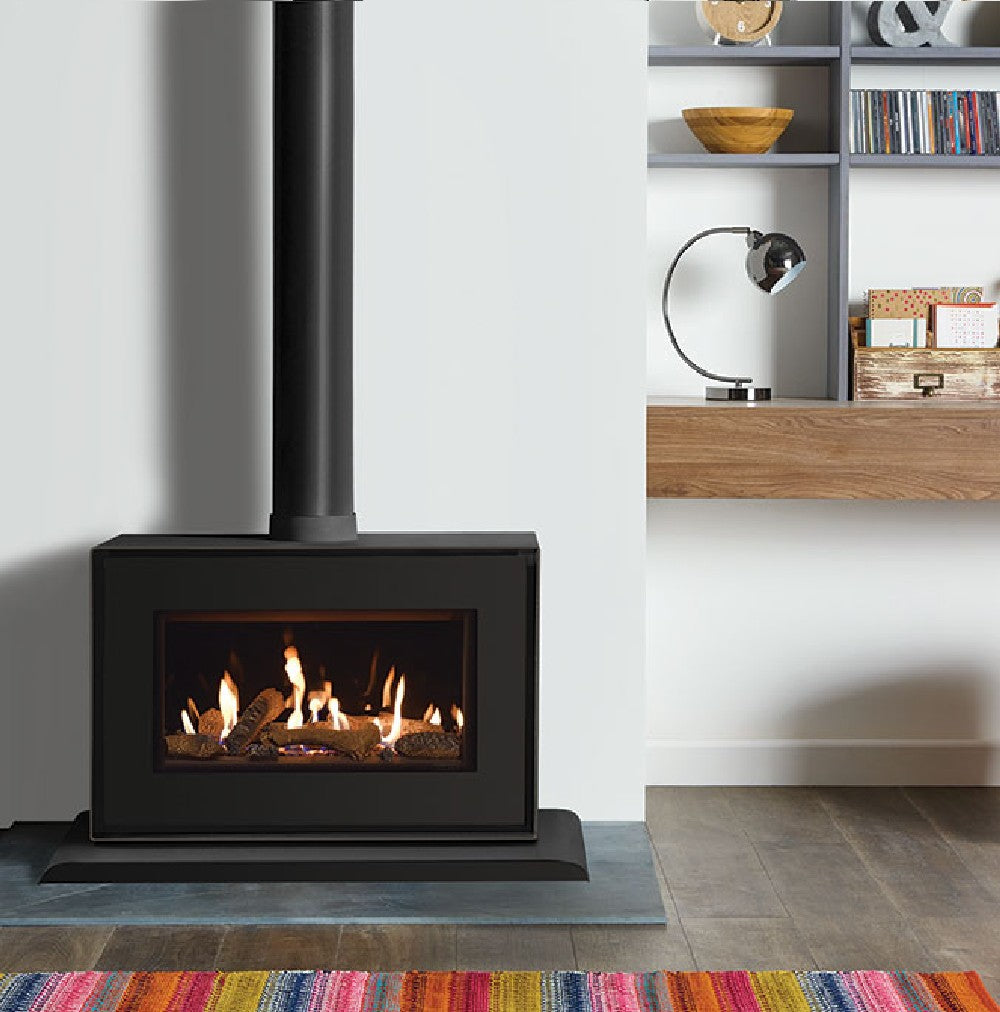

Gazco Studio 1 Freestanding Conventional Flue Gas Stove

Gazco Studio 1 Freestanding Conventional Flue Gas Stove

• Glass Fronted Log Flame Effect
• Up to 81% Gas Fire Efficiency
• Up to 5.2kW Gas Heat Output
• Chimney Type Class 1
• Remote control as standard

Gazco Studio 1 Freestanding Conventional Flue Gas Stove

Offering a breathtaking view of the rolling flames, the Studio 1 Freestanding gas fire incorporate the same high efficiency firebox technology as their Studio inset equivalents, as well as the wide range of Studio fuel bed and firebox lining options.

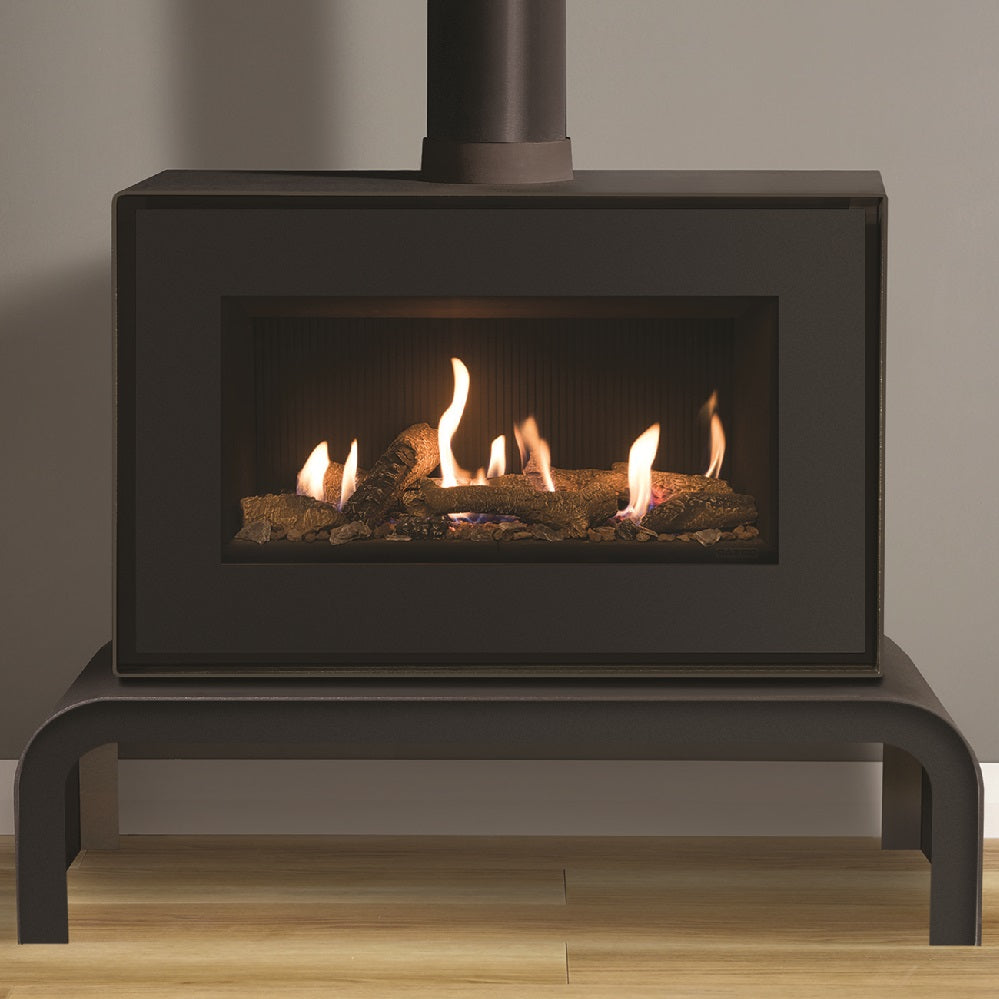

These large format fires are available with a choice of smoothly curving bench or plinth mounting options, each echoing the fire’s distinctive design and are offered in either White or Black finishes.

Gazco Studio 1 Freestanding Conventional Flue Gas Stove Specification:
Safety Flame Supervision Device (FSD)
Airwatch System
Type of Heat: Radiant & Convection
Efficiency Balanced Flue : 88%
Conventional Flue : 68%
Heating Efficiency: 81%
Heat Input High: 6.90 kW
Heat Output High: 5.20 kW
Heat Output Low: 2.34 kW

Linings

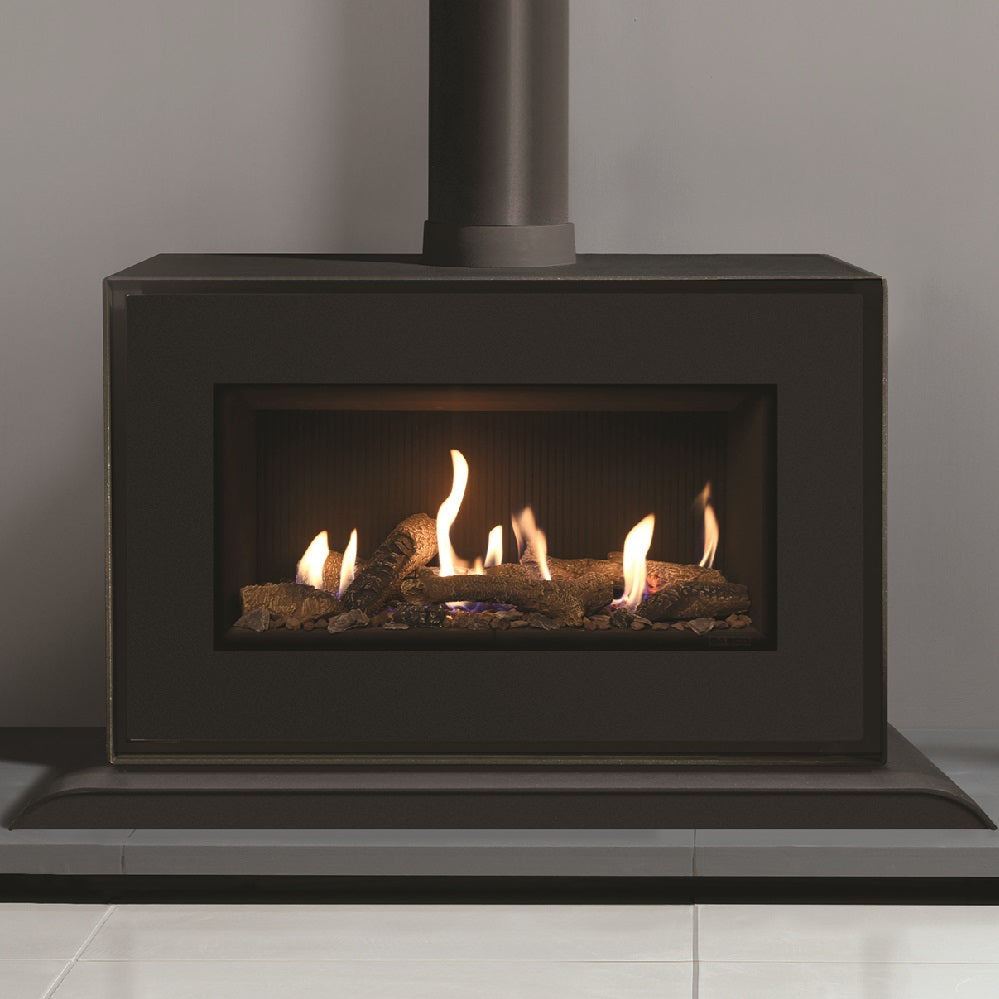

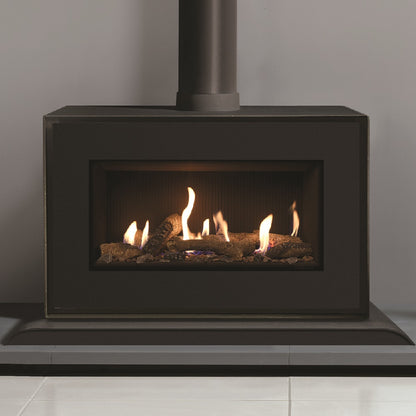

EchoFlame Black Glass, Vermiculite, or Black Reeded

Fuel Bed Options:
Log Effect Fuel bed with Emberglow

Control Options:
Manual With Upgradable Remote Control Options Below.
Optional Standard Remote Kit.
Optional Thermostatic Remote Kit.

Gas Stove minimum clearances required between stove and other surfaces:
From Top: 225mm
From Sides: 150mm
From Rear: 50mm

Installation requirements:
Air Vent may be required
Class 1 Chimney
Flue Liner Required

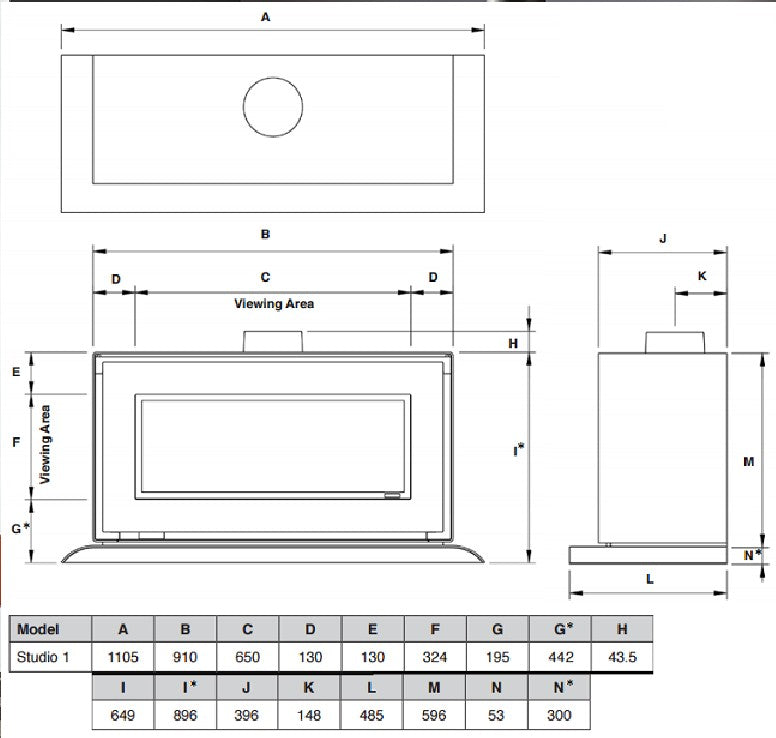

Technical Drawing - Sizes:

Gazco Studio 1 Flame Effect
