Gazco Vision Small Balanced Flue Gas Stove

Gazco Vision Small Balanced Flue Gas Stove

• Glass Fronted Log Flame Effect
• Up to 85% Gas Fire Efficiency
• Up to 2.56kW Gas Heat Output
• Flue Type: Balanced Flue Gas
• Manual Control as standard

Gazco Vision Small Balanced Flue Gas Stove

The Gazco Vision Small gas stove offers beautiful, contemporary aesthetics in a neat package – well suited to standard chimney openings thanks to its compact proportions.

Gazco Vision Small Balanced Flue Gas Stove Specification:
Safety Flame Supervision Device (FSD)
Airwatch System
Type of Heat: Radiant & Convection.
Heating Efficiency: 85%
Heat Input High: 3.2kW
Heat Output High: 2.56kW
Heat Output Low: 1.9kW

Fuel Bed Options:
Log Effect Fuel bed with Emberglow

Control Options:
Manual With Upgradable Remote Control Options Below.
Optional Standard Remote Kit.
Optional Thermostatic Remote Kit.

Colour Options:
Black

Gas Stove minimum clearances required between stove and other surfaces:
From Top: 225mm
From Sides: 150mm
From Rear: 50mm

There are 2 Balance Flue kits available, these are as follows:

Balance Flue Option 1: Out The Back (Rear Exit)
Components: 1 X 660mm terminal length & Terminal With Guard

Balance Flue Option 2: Up & Out (Vertical Exit 90 Degree Bend) (Kit Number: 8567)
Colour: Stainless Steel
Components (1 X 940mm Straight, 1 X 462mm terminal length & 1 X 90 Degree Bend)
(NB Guard Required for below 2m)

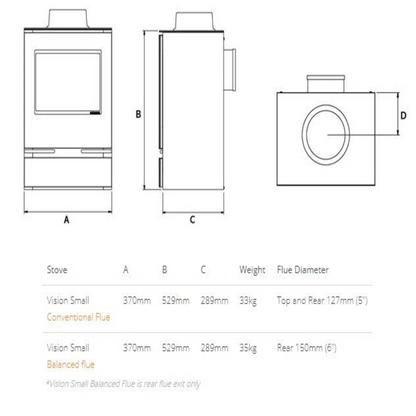

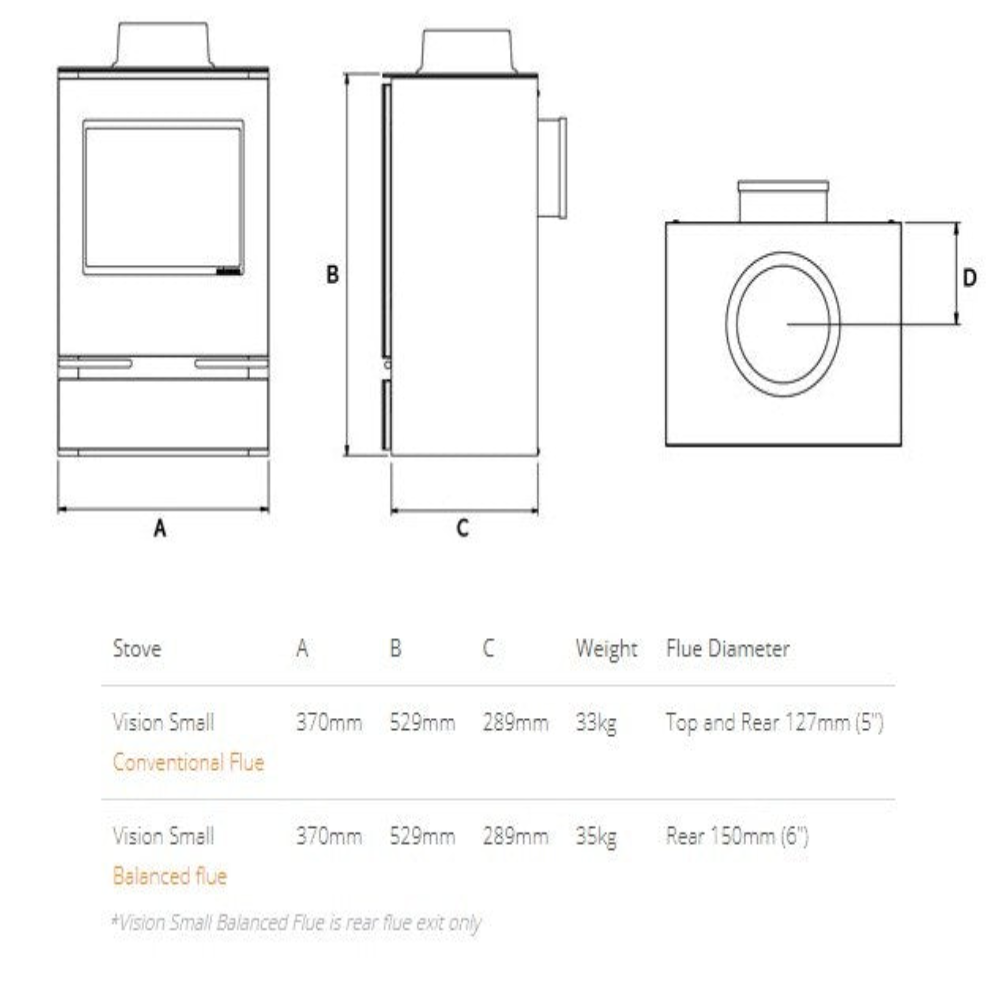

Technical Drawing:

As a PASSIVE HOUSE GAS FIREPLACE-PASSIVE HOME FIREPLACE - this appliance will result in a higher BER rating in your Irish home.

Gazco Vision Small Gas Stove Flame Effect
